Small Guided Missile
SGM “VESNA”

The SGM “Vesna” is a guided missile based on the production-ready Hydra 70 platform, designed for mass deployment against small aerial targets.

The main approach involves using existing missile platforms with the addition of a guidance module, enabling a rapid transition from unguided to guided weapons without altering the production base.

The project is focused on creating a compact and scalable solution that can be deployed as part of a distributed system with minimal infrastructure and personnel requirements.

The Problem

Modern UAV countermeasure systems are characterised by a high cost per target and limited scalability.

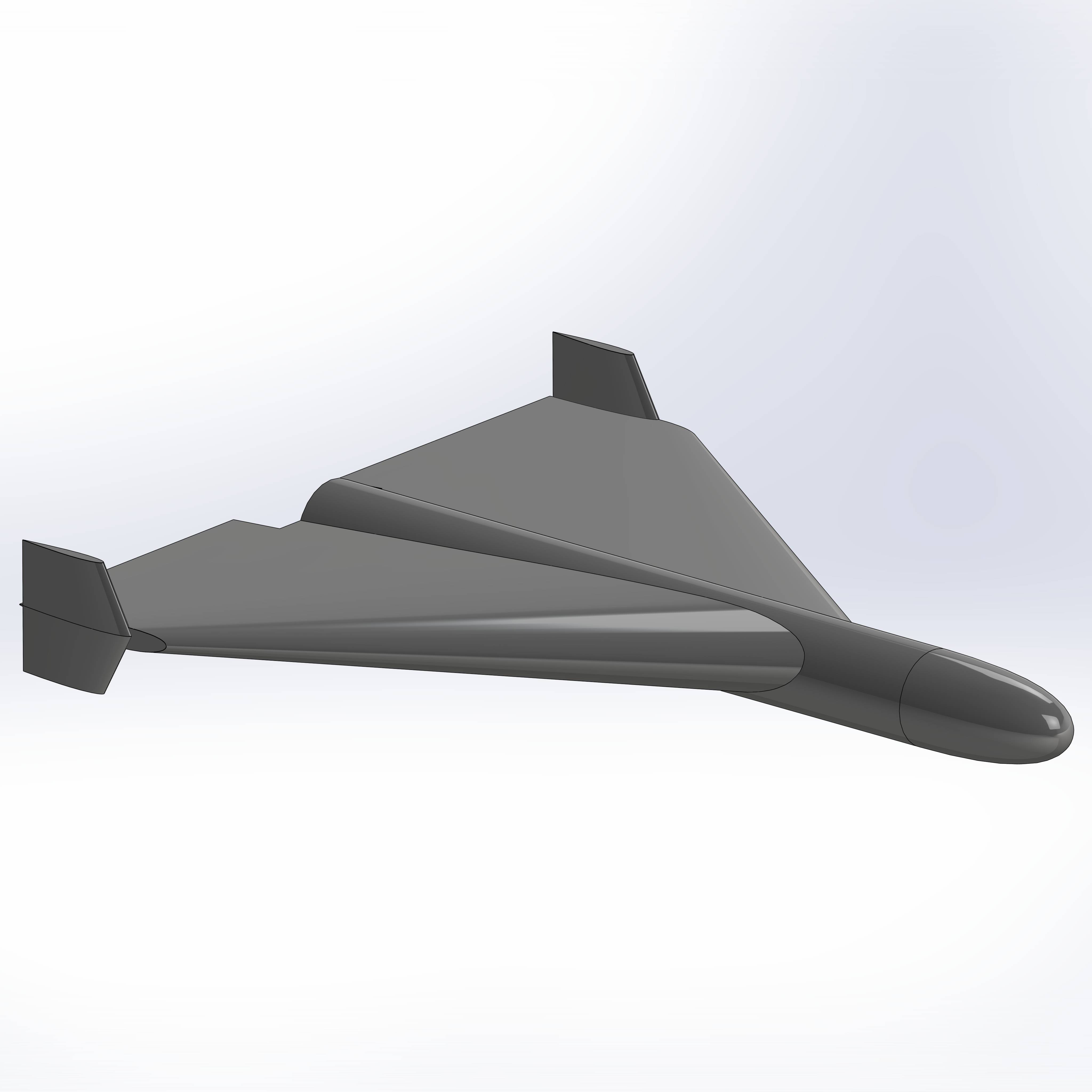

At the same time, targets such as Shahed-type drones have a significantly lower cost, leading to the economically inefficient use of conventional missile solutions.

Furthermore, many systems require complex infrastructure, lengthy deployment times and a significant number of operators, which reduces their applicability in the event of mass attacks.

Consequently, there is a need for a simple, inexpensive and rapidly scalable means of engaging aerial targets.

Solution

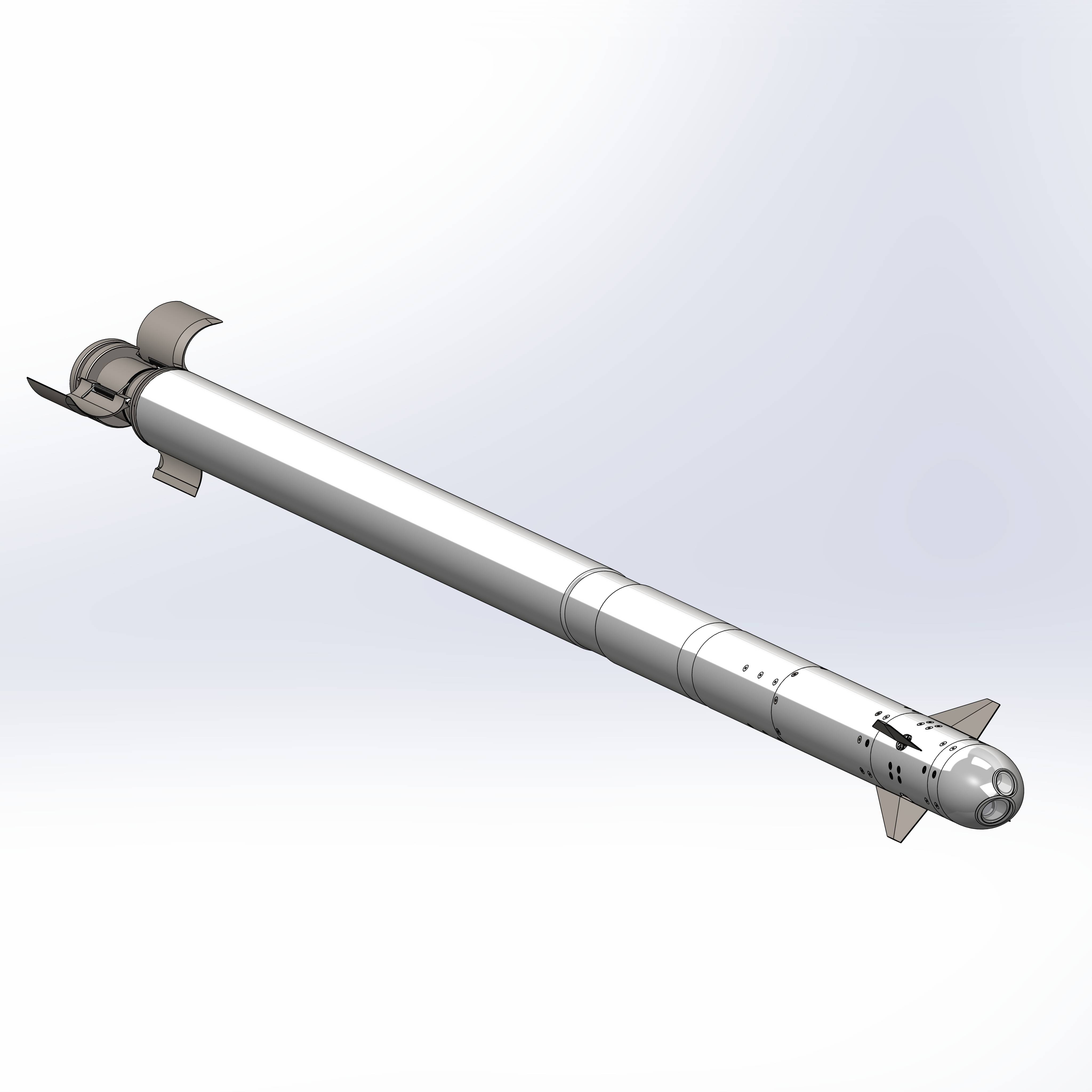

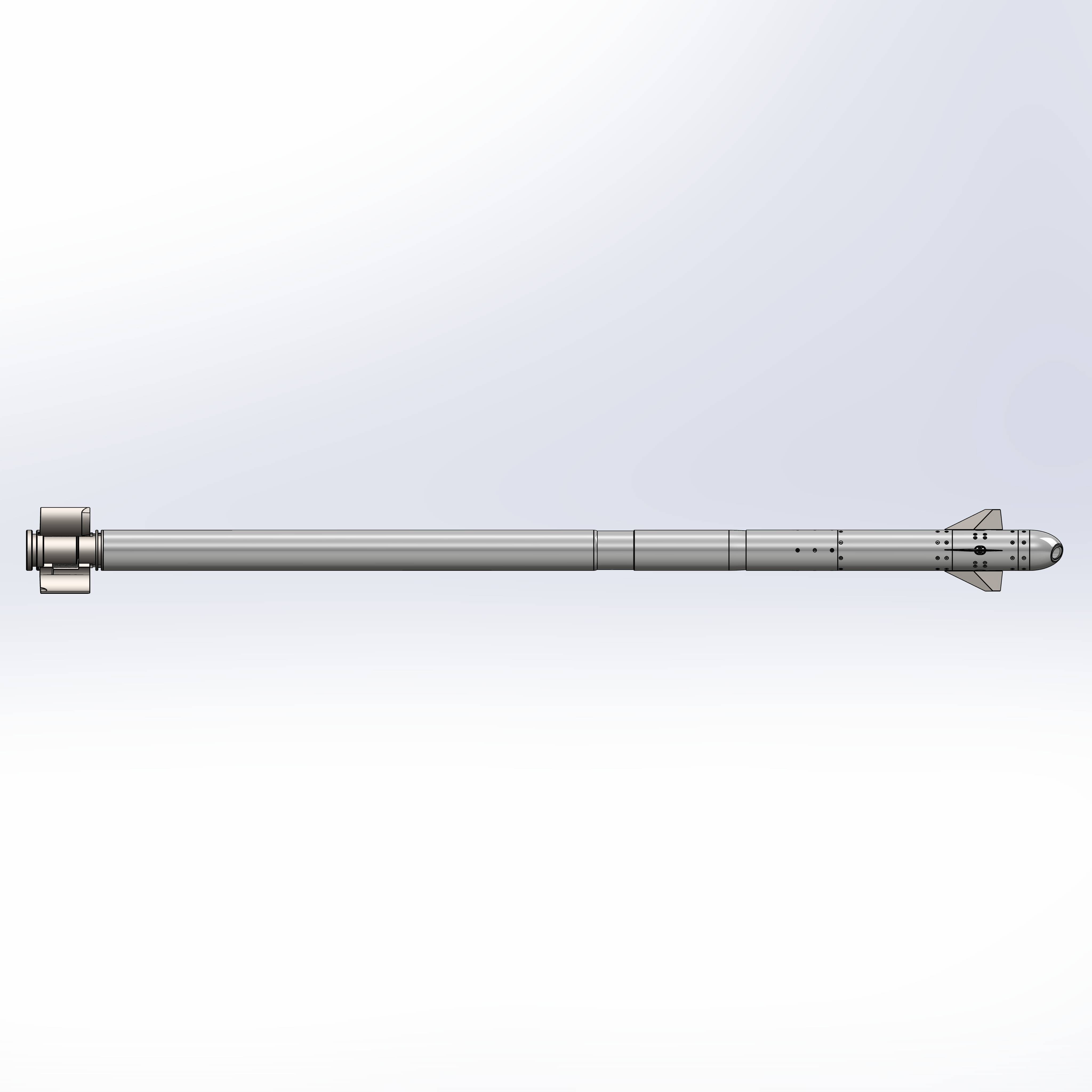

The SGM “Vesna” modernises the standard Hydra 70 rocket by installing a control module and implementing a combined guidance system.

weight ~12 kg
length ~1.6 m
diameter 70 mm
speed 200 m/s during the cruise phase
flight time ~20 seconds

The missile operates on a two-stage scheme: coordinate guidance is used during the cruise phase, whilst autonomous guidance using optical and infrared channels is employed during the terminal phase.

Prior to launch, the missile receives target parameters; trajectory correction is possible during flight, and in the terminal phase the system operates autonomously without operator intervention.

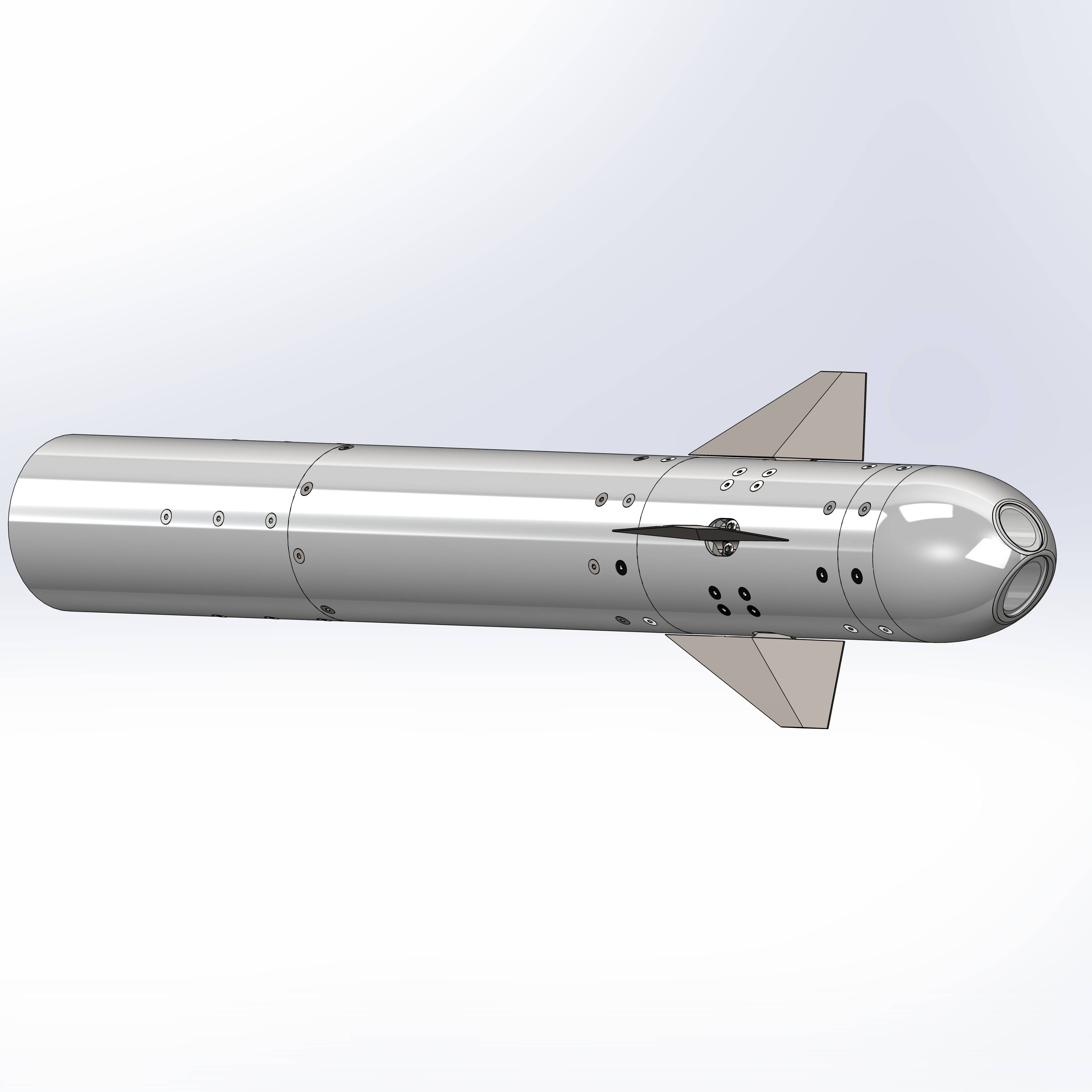

Guidance module

The guidance module is a compact unit that can be mounted on a standard Hydra 70 missile without altering its basic design.

The module provides data reception prior to launch, trajectory control during the cruise phase, and a transition to autonomous guidance after target acquisition.

The module’s design is geared towards mass production, simple integration and compatibility with existing missile platforms.

Application

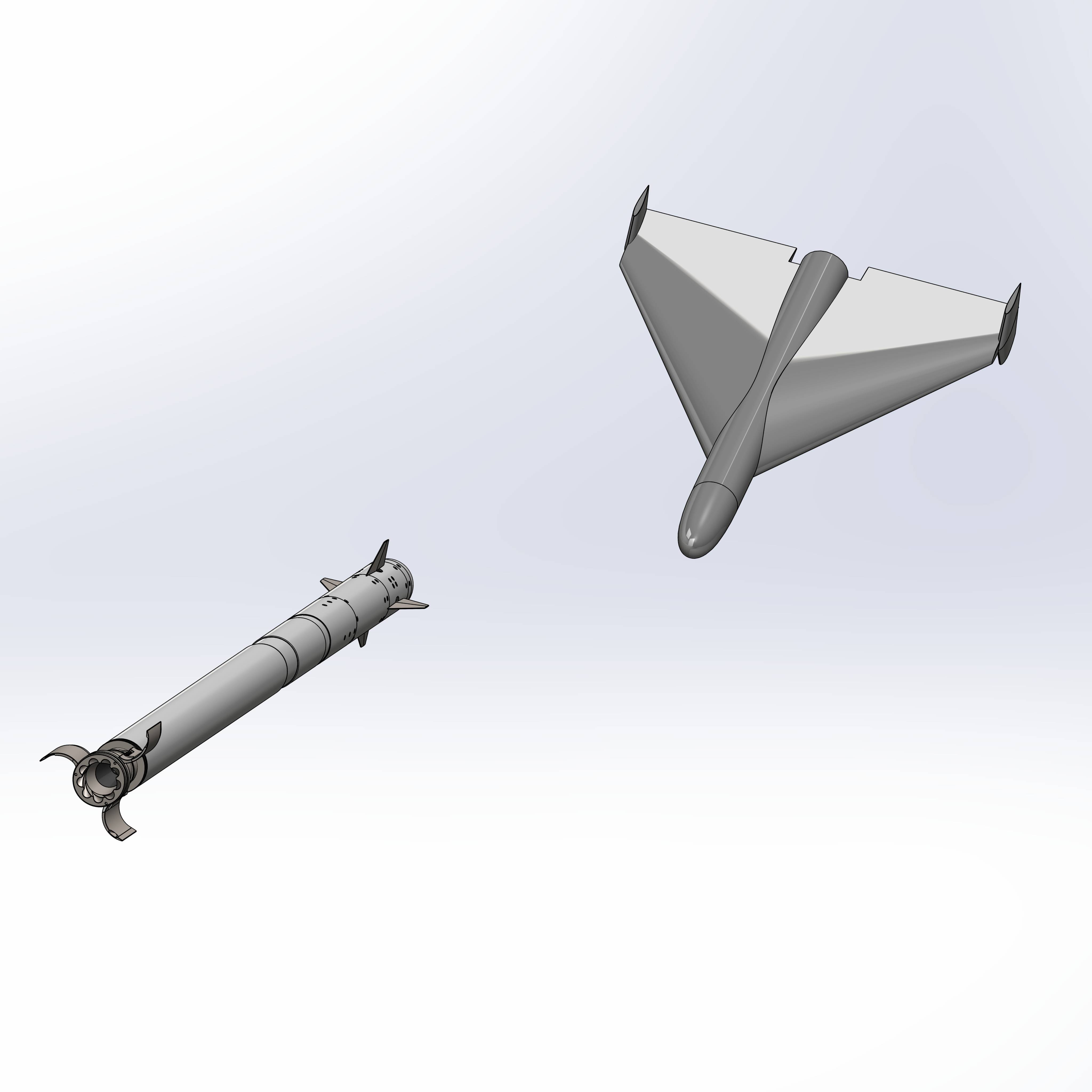

The system is designed to engage small-sized aerial targets at ranges of up to 20 km at minimal cost of operation.

ground-based platforms.
airborne platforms.
maritime unmanned systems.

The use of off-the-shelf components and existing missile platforms reduces the cost of a single missile to approximately USD 10,000.

Small Guided Missile
SGM “VESNA”

The SGM “Vesna” is a guided missile based on the production-ready Hydra 70 platform, designed for mass deployment against small aerial targets.

The main approach involves using existing missile platforms with the addition of a guidance module, enabling a rapid transition from unguided to guided weapons without altering the production base.

The project is focused on creating a compact and scalable solution that can be deployed as part of a distributed system with minimal infrastructure and personnel requirements.

The Problem

Modern UAV countermeasure systems are characterised by a high cost per target and limited scalability.

At the same time, targets such as Shahed-type drones have a significantly lower cost, leading to the economically inefficient use of conventional missile solutions.

Furthermore, many systems require complex infrastructure, lengthy deployment times and a significant number of operators, which reduces their applicability in the event of mass attacks.

Consequently, there is a need for a simple, inexpensive and rapidly scalable means of engaging aerial targets.

Solution

The SGM “Vesna” modernises the standard Hydra 70 rocket by installing a control module and implementing a combined guidance system.

weight ~12 kg
length ~1.6 m
diameter 70 mm
speed 200 m/s during the cruise phase
flight time ~20 seconds

The missile operates on a two-stage scheme: coordinate guidance is used during the cruise phase, whilst autonomous guidance using optical and infrared channels is employed during the terminal phase.

Prior to launch, the missile receives target parameters; trajectory correction is possible during flight, and in the terminal phase the system operates autonomously without operator intervention.

Guidance module

The guidance module is a compact unit that can be mounted on a standard Hydra 70 missile without altering its basic design.

The module provides data reception prior to launch, trajectory control during the cruise phase, and a transition to autonomous guidance after target acquisition.

The module’s design is geared towards mass production, simple integration and compatibility with existing missile platforms.

Application

The system is designed to engage small-sized aerial targets at ranges of up to 20 km at minimal cost of operation.

ground-based platforms.
airborne platforms.
maritime unmanned systems.

The use of off-the-shelf components and existing missile platforms reduces the cost of a single missile to approximately USD 10,000.

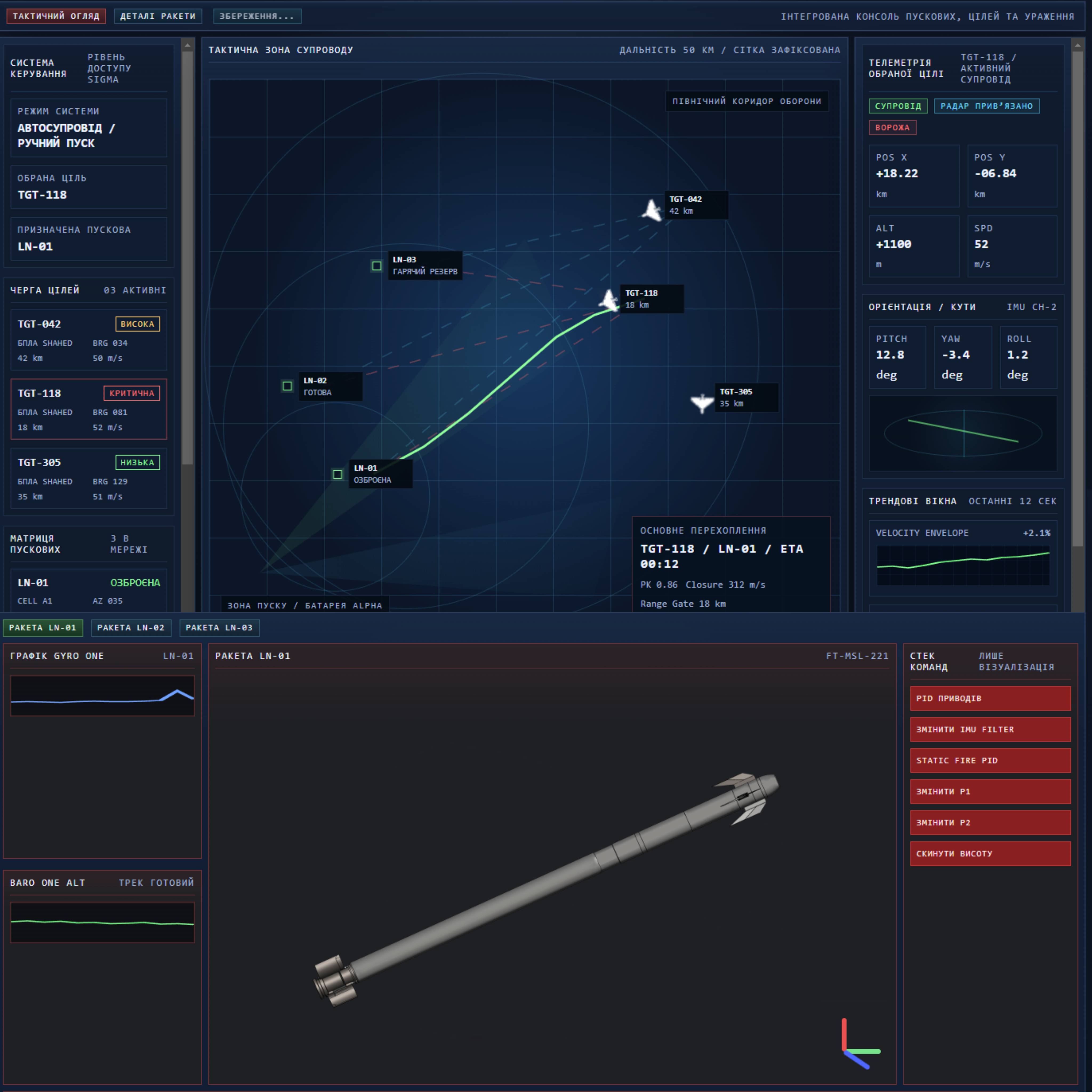

FourTwo Control System

The FourTwo control system is proprietary in-house developed software that provides launch control, communication with missiles and real-time monitoring of their status.

map display with targets and coverage zones
target data acquisition and processing
launcher selection and launch control
transfer of launch parameters to the missile before takeoff

During flight, the system displays telemetry in real time, including position, speed, g-loads, attitude, trajectory, and system status.

spatial position
velocity and g-forces
orientation angles and trajectory
system status and operating modes

The system maintains constant communication with the missile during the cruise phase and allows its behaviour to be tracked until the transition to autonomous guidance.

FourTwo is designed to operate simultaneously with multiple launchers and provides centralised control of the entire system from a single ground station.

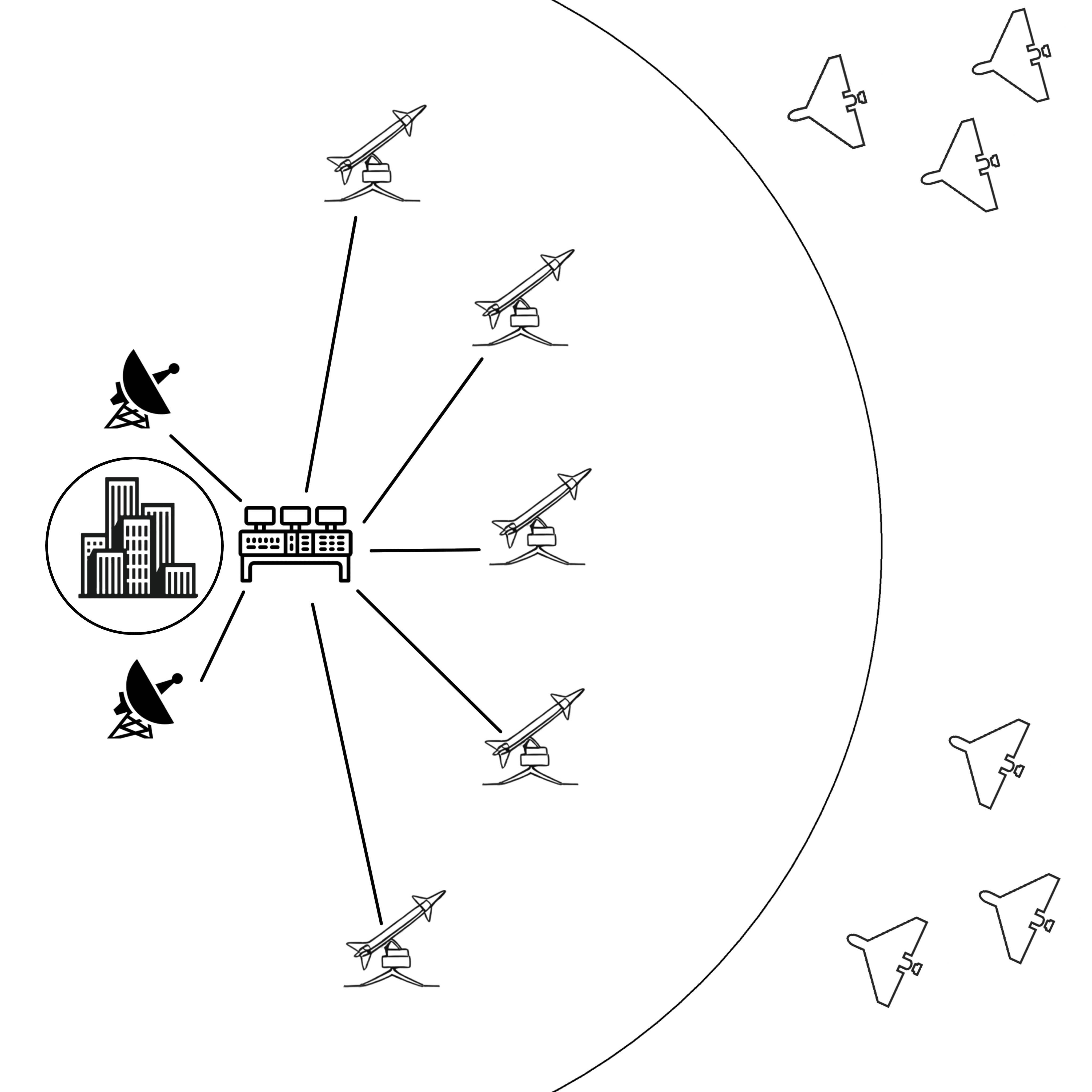

Defense Architecture

The system is an autonomous modular missile complex designed for scalable deployment and point air defense.

It is delivered as a turnkey solution that includes all elements required to detect, track, and engage targets without deep integration into third-party systems.

SGM Vesna guided missiles
distributed launch units
ground control station

Launch units are deployed around the protected site and networked to a single remote control station. On the midcourse segment, the missile receives target coordinates, speed, and range and flies a corrected trajectory before switching to autonomous terminal engagement.

Low missile mass and modular design allow integration on land, air, and naval platforms, while serial components and distributed architecture support fast scaling with a minimal crew.

The system requires minimal personnel:

2 operators
2 maintenance personnel

The use of off-the-shelf components and a distributed architecture ensures rapid scaling and adaptation to site defence tasks.
